Integration Tests using Teuthology Workflow

Infrastructure

Components

  1. ceph-ci: Clone of the main Ceph repository, used for triggering Jenkins Ceph builds for development.

  2. Ceph Jenkins: Responsible for triggering builds, uploading packages to Chacra, and pushing updates about the build to Shaman.

  3. Shaman: UI Interface used to check build status. In its backend, it is a REST API to query and store build information.

  4. Chacra: Service where packages are uploaded. The binaries uploaded here can be downloaded and used by anyone.

  5. Teuthology CLI: Developers can use various Teuthology commands to schedule and manage test runs.

  6. Teuthology: This component is responsible for pushing test jobs to the Beanstalk queue and Paddles. It also picks jobs from the queue and runs tests.

  7. Beanstalk queue: A priority queue containing all the queued jobs. Developers typically do not need to interact with it.

  8. Paddles: A backend service that stores all test run information. Developers typically do not need to interact with it.

  9. Pulpito: A UI interface (for information stored in Paddles) that allows developers to see detailed information about their scheduled tests, including status and results.

  10. Testnodes: A cluster of various machines that are used for running tests. Developers usually schedule tests to run on smithi machines, which are dedicated test nodes for Teuthology integration testing.

Each Teuthology test run contains multiple test jobs. Each job runs in an environment isolated from other jobs, on a different collection of test nodes.

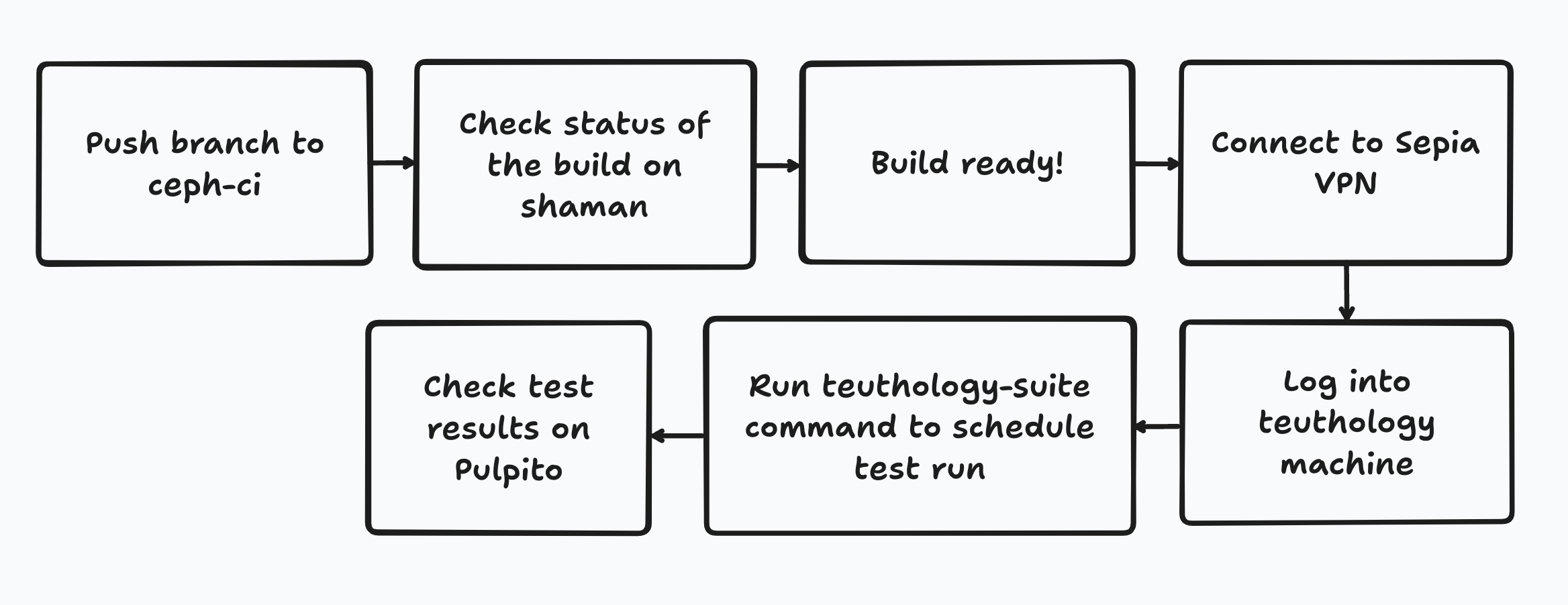

Workflow Overview

../../../../_images/workflow.png

To test a change in Ceph, start by pushing a branch with your changes to the ceph-ci repository. This will automatically trigger the Jenkins process to build Ceph binaries - the status of the build can be observed on Shaman. These built packages will be uploaded on Chacra.

To schedule a Teuthology integration test against this new build, you will need access to the Sepia lab. Once you have access, log into the Teuthology machine and complete the one-time initial Teuthology setup required to run Teuthology commands. After the setup, use the teuthology-suite command to schedule a Teuthology run. In this command, use the -c <ceph-ci branch name> option to specify your build. The results of your test can be observed on Pulpito. Log into a developer playground machine to review the Teuthology run’s archive logs.

The rest of the document will explain these steps in detail:

  1. Getting binaries - Build Ceph.

  2. Scheduling Test Run:

    1. About Test Suites.

    2. Triggering Teuthology Tests.

    3. Testing QA changes (without re-building binaries).

    4. Filtering Tests.

  3. Viewing Test Results:

    1. Pulpito Dashboard.

    2. Teuthology Archives (Reviewing Logs).

  4. Killing tests.

  5. Re-running tests.

Getting binaries - Build Ceph

Ceph binaries must be built for your branch before you can use teuthology to run integration tests on them. Follow these steps to build the Ceph binaries:

  1. Push the branch to the ceph-ci repository. This triggers the process of building the binaries on the Jenkins CI.

  2. To ensure that the build process has been initiated, confirm that the branch name has appeared in the list of “Latest Builds Available” at Shaman. Soon after you start the build process, the testing infrastructure adds other, similarly-named builds to the list of “Latest Builds Available”. The names of these new builds will contain the names of various Linux distributions of Linux and will be used to test your build against those Linux distributions.

  3. Wait for the packages to be built and uploaded to Chacra, and wait for the repositories offering the packages to be created. The entries for the branch names in the list of “Latest Builds Available” on Shaman will turn green to indicate that the packages have been uploaded to Chacra and to indicate that their repositories have been created. Wait until each entry is coloured green. This usually takes between two and three hours depending on the availability of the machines.

    The Chacra URL for a particular build can be queried from the Chacra site.

Note

The branch to be pushed on ceph-ci can be any branch. The branch does not have to be a PR branch.

Note

If you intend to push master or any other standard branch, check Shaman beforehand since it might already have completed builds for it.

Pushing to the ceph-ci repository

Follow these steps to push to the ceph-ci repository. After pushing, a new build will automatically be scheduled.

  1. Add the ceph-ci repository as a remote to your local clone of the Ceph repository:

    git remote add ceph-ci git@github.com:ceph/ceph-ci.git

$ git remote -v
origin   git@github.com:ceph/ceph.git (fetch)
origin   git@github.com:ceph/ceph.git (push)
ceph-ci  git@github.com:ceph/ceph-ci.git (fetch)
ceph-ci  git@github.com:ceph/ceph-ci.git (push)

  2. Push your branch upstream by running a command of the following form:

    $ git push ceph-ci wip-yourname-feature-x

Naming the ceph-ci branch

Prepend your branch with your name before you push it to ceph-ci. For example, a branch named feature-x should be named wip-$yourname-feature-x, where $yourname is replaced with your name. Identifying your branch with your name makes your branch easily findable on Shaman and Pulpito.

If you are using one of the stable branches (quincy, pacific, etc.), include the name of that stable branch in your ceph-ci branch name. For example, the feature-x PR branch should be named wip-feature-x-nautilus. This is not just a convention. This ensures that your branch is built in the correct environment.

Delete the branch from ceph-ci when you no longer need it. If you are logged in to GitHub, all your branches on ceph-ci can be found here: https://github.com/ceph/ceph-ci/branches.

Note

You can choose to only trigger a CentOS 9.Stream build (excluding other distro like ubuntu) by adding “centos9-only” at the end of the ceph-ci branch name. For example, wip-$yourname-feature-centos9-only. This helps to get quicker builds and save resources when you don’t require binaries for other distros.

Scheduling Test Run

About Test Suites

Integration tests are organized into “suites”, which are defined in qa/suites sub-directory of the Ceph repository. These test suites can be run with the teuthology-suite command.

See Suites Inventory for a list of available suites of integration tests.

More details understanding of how these test suites are defined can be found on Integration Test Introduction Page.

Triggering Teuthology Tests

After you have built Ceph binaries for your branch, you can run tests using teuthology. This procedure explains how to run tests using teuthology.

  1. Log in to the teuthology machine:

    ssh <username>@teuthology.front.sepia.ceph.com

    This requires Sepia lab access. To request access to the Sepia lab, see: https://ceph.github.io/sepia/adding_users/.

  2. For initial setup, follow teuthology installation guide to setup teuthology for your user on teuthology machine. This will enable you to run teuthology commands.

  3. Run the teuthology-suite command:

    teuthology-suite -v \
-m smithi \
-c wip-devname-feature-x \
-s fs \
-p 110 \
--filter "cephfs-shell" \
-e foo@gmail.com

    The options in the above command are defined here:

    Option

    Meaning

    -v

    verbose

    -m

    machine name

    -c

    the name of the branch that was pushed on ceph-ci

    -s

    test-suite name

    -p

    the higher the number, the lower the priority of the job

    --filter

    filter tests in a given suite. The argument passed to this filter specifies which test you want to run

    -e <email>

    When tests finish or time out, send an email to the specified address. Can also be specified in ~/.teuthology.yaml as ‘results_email’

    Note

    The priority number present in the command above is a placeholder. Do not use it in your own tests. See Testing Priority for information about recommended values.

    Note

    Do not issue a command without a priority number. The default value is 1000, a value so large that your job is unlikely ever to run.

    Run teuthology-suite --help to read descriptions of these and other available options.

  4. Wait for the tests to run. teuthology-suite prints a link to Pulpito where the test results can be viewed.

The --dry-run option allows you to demo-run teuthology-suite command without actually scheduling teuthology tests. This is helpful to check how many jobs and which jobs a command will schedule.

Other frequently used/useful options are -d (or --distro), --distro-version, --filter-out, --timeout, flavor, --rerun, --limit (for limiting number of jobs) , -N (for how many times the job will run), and --subset (used to reduce the number of tests that are triggered). Run teuthology-suite --help to read descriptions of these and other options.

Testing QA changes (without re-building binaries)

If you are making changes only in the qa/ directory, you do not have to rebuild the binaries before you re-run tests. If you make changes only in qa/, you can use the binaries built for the ceph-ci branch to re-run tests. You just have to make sure to tell the teuthology-suite command to use a separate branch for running the tests.

If you made changes only in qa/ (https://github.com/ceph/ceph/tree/master/qa), you do not need to rebuild the binaries. You can use existing binaries that are built periodically for master and other stable branches and run your test changes against them. Your branch with the qa changes can be tested by passing two extra arguments to the teuthology-suite command: (1) --suite-repo, specifying your ceph repo, and (2) --suite-branch, specifying your branch name.

For example, if you want to make changes in qa/ after testing branch-x (for which the ceph-ci branch is wip-username-branch-x), run the following command

teuthology-suite -v \
 -m smithi \
 -c wip-username-branch-x \
 -s fs \
 -p 50 \
 --filter cephfs-shell

Then make modifications locally, update the PR branch, and trigger tests from your PR branch as follows:

teuthology-suite -v \
 -m smithi \
 -c wip-username-branch-x \
 -s fs -p 50 \
 --filter cephfs-shell \
 --suite-repo https://github.com/$username/ceph \
 --suite-branch branch-x

You can verify that the tests were run using this branch by looking at the values for the keys suite_branch, suite_repo and suite_sha1 in the job config printed at the beginning of the teuthology job.

Note

If you are making changes that are not in the qa/ directory, you must follow the standard process of triggering builds, waiting for the builds to finish, then triggering tests and waiting for the test results.

Filtering Tests

Test suites includes combinations of many yaml files which can results in massive amount of jobs being scheduled for a suite. So filters can help to reduce the amount of jobs or schedule particular jobs within a suite.

Keywords for filtering tests can be found in qa/suites/<suite-name>/<subsuite-name>/tasks in Ceph repository and can be used as arguments for --filter. Each YAML file in that directory can trigger tests; using the name of the file without its filename extension as an argument to the --filter triggers those tests.

For example, in the command above in the Testing QA Changes section, cephfs-shell is specified. This works because there is a file named cephfs-shell.yaml in qa/suites/fs/basic_functional/tasks/.

If the filename doesn’t suggest what kind of tests it triggers, search the contents of the file for the modules attribute. For cephfs-shell.yaml the modules attribute is tasks.cephfs.test_cephfs_shell. This means that it triggers all tests in qa/tasks/cephfs/test_cephfs_shell.py.

Read more about how to Filter Tests by their Description.

Viewing Test Results

Pulpito Dashboard

After the teuthology job is scheduled, the status and results of the test run can be checked at https://pulpito.ceph.com/.

Teuthology Archives

After the tests have finished running, the log for the job can be obtained by clicking on the job ID at the Pulpito run page associated with your tests. It’s more convenient to download the log and then view it rather than viewing it in an internet browser since these logs can easily be up to 1 GB in size. It is also possible to ssh into a developer playground machine and access the following path:

/teuthology/<run-name>/<job-id>/teuthology.log

For example: for the above test ID, the path is:

/teuthology/teuthology-2019-12-10_05:00:03-smoke-master-testing-basic-smithi/4588482/teuthology.log

This method can be used to view the log more quickly than would be possible through a browser.

To view ceph logs (cephadm, ceph monitors, ceph-mgr, etc) or system logs, remove teuthology.log from the job’s teuthology log url on browser and then navigate to remote/<machine>/log/. System logs can be found at remote/<machine>/syslog/. Similarly, these logs can be found on developer playground machines at /teuthology/<test-id>/<job-id>/remote/<machine>/.

Some other files that are included for debugging purposes:

  • unit_test_summary.yaml: Provides a summary of all unit test failures. Generated (optionally) when the unit_test_scan configuration option is used in the job’s YAML file.

  • valgrind.yaml: Summarizes any Valgrind errors that may occur.

Note

To access archives more conveniently, /a/ has been symbolically linked to /teuthology/. For instance, to access the previous example, we can use something like:

/a/teuthology-2019-12-10_05:00:03-smoke-master-testing-basic-smithi/4588482/teuthology.log

Killing Tests

teuthology-kill can be used to kill jobs that have been running unexpectedly for several hours, or when developers want to terminate tests before they complete.

Here is the command that terminates jobs:

teuthology-kill -p  -r teuthology-2019-12-10_05:00:03-smoke-master-testing-basic-smithi -m smithi -o scheduled_teuthology@teuthology

The argument passed to -r is run name. It can be found easily in the link to the Pulpito page for the tests you triggered. For example, for the above test ID, the link is - http://pulpito.front.sepia.ceph.com/teuthology-2019-12-10_05:00:03-smoke-master-testing-basic-smithi/

Re-running Tests

The teuthology-suite command has a -r (or --rerun) option, which allows you to re-run tests. This is handy when your tests have failed or end up dead. The --rerun option takes the name of a teuthology run as an argument. Option -R (or --rerun-statuses) can be passed along with -r to choose which kind of tests should be picked from the run. For example, you can re-run only those tests from previous run which had ended up as dead. Following is a practical example:

teuthology-suite -v \
 -m smithi \
 -c wip-rishabh-fs-test_cephfs_shell-fix \
 -p 50 \
 --r teuthology-2019-12-10_05:00:03-smoke-master-testing-basic-smithi \
 -R fail,dead,queued \
 -e $CEPH_QA_MAIL

Following’s the definition of new options introduced in this section:

Option

Meaning

-r, --rerun

Attempt to reschedule a run, selecting only those jobs whose status are mentioned by --rerun-status.

-R, --rerun-statuses

A comma-separated list of statuses to be used with --rerun. Supported statuses: ‘dead’, ‘fail’, ‘pass’, ‘queued’, ‘running’ and ‘waiting’. Default value: ‘fail,dead’
